At a glance
Main Advantages of MAXIMO
- Fast anchoring thanks to the single-sided anchor technology without spacer tubes and cones
- Fewer anchors thanks to optimised arrangement of the anchor points
- Easy positioning of panels of all sizes thanks to ergonomic positioning handle and large levering corner
- High fresh concrete pressure
- High durability and easy cleaning thanks to innovative, full-surface organic coating
- Low CO2 footprint in production with PERIskin coating compared to conventional corrosion protection systems
- Harmonious concrete appearance due to the organised joint and tie grid as well as low nail imprint
- Continuous flexibility in the attachment of parts of the PERI UP Scaffolding Kit and accessories
- RFID tags for comprehensive information recording
MAXIMO is fully customised for the single-sided anchoring technique.

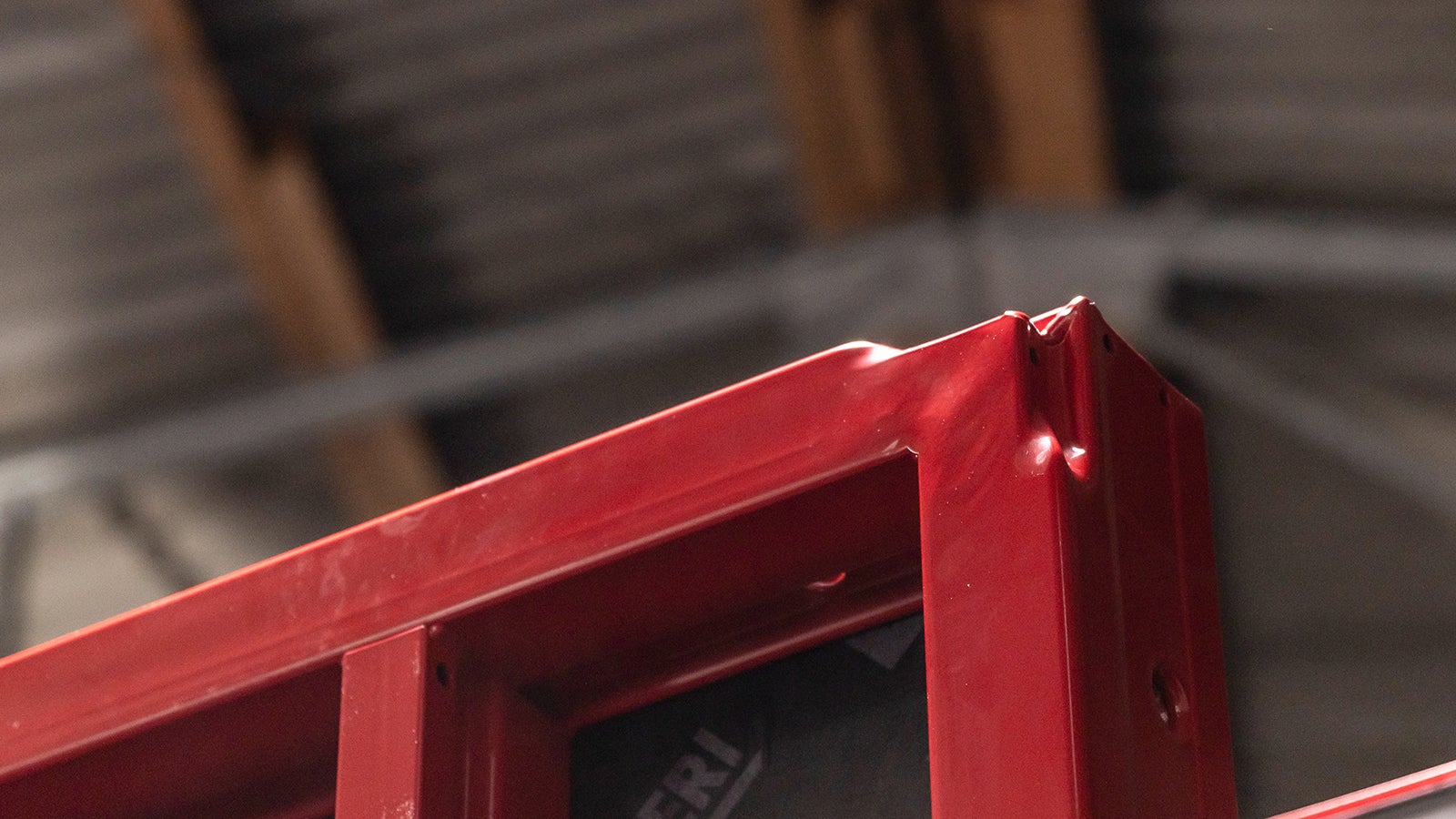

The large surface of the levering corner allows easier access with the lifting bar, making deshuttering considerably easier.

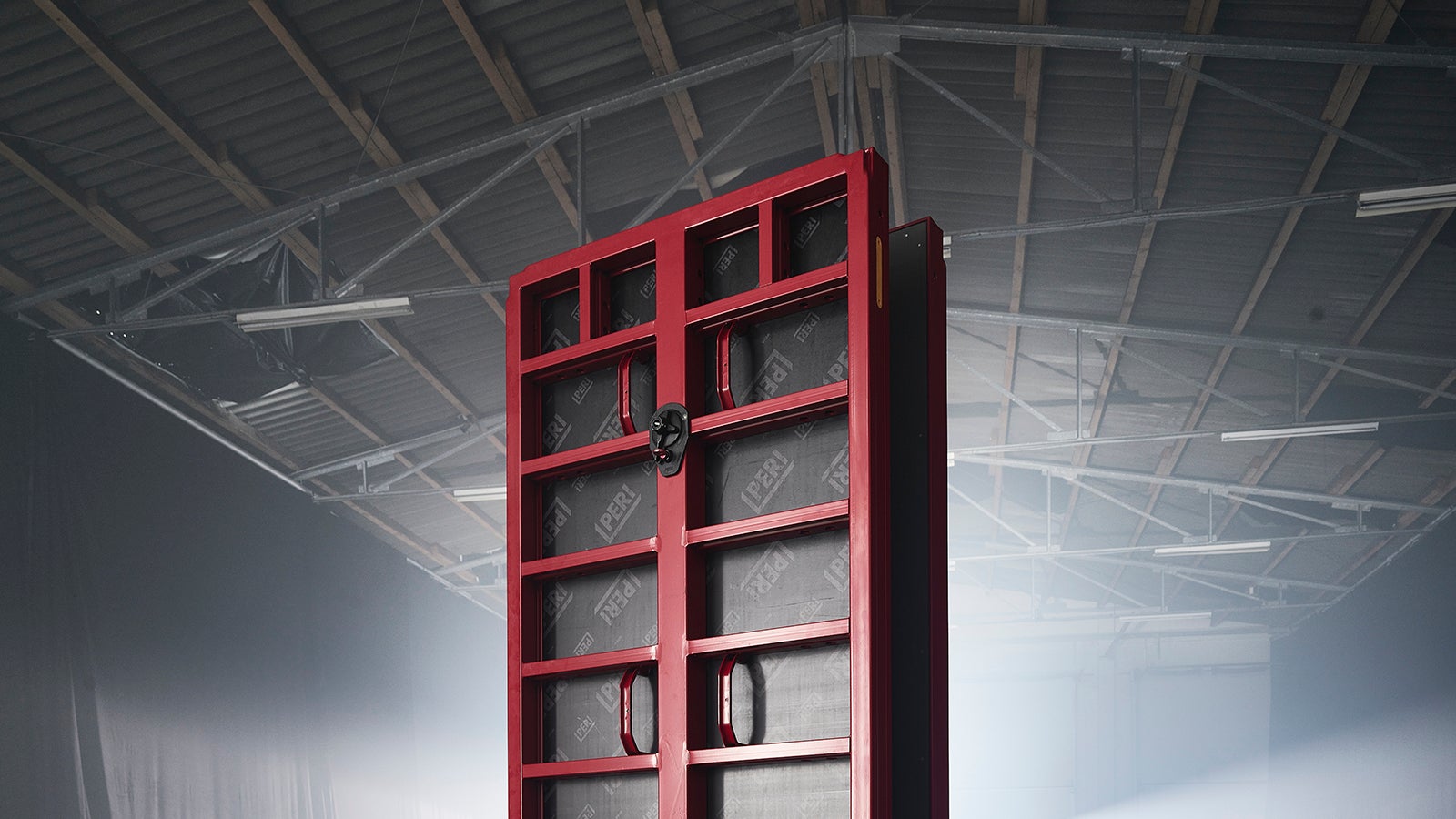

The PERIskin corrosion prevention system protects all of the cavities. In addition, the coating is applied at room temperature to conserve resources.
The MAXIMO bone strut enables both accessories and components from the PERI UP Scaffolding Kit to be attached without a grid.
Where innovation meets tradition.

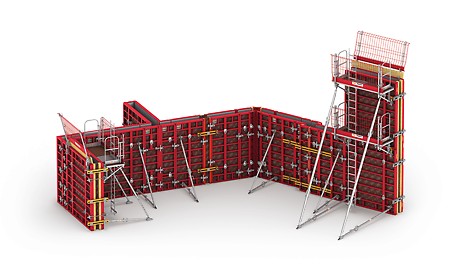

MAXIMO combines the product advantages of panelled formwork that has been tried and tested for decades with the latest technology – and makes working on the construction site user-friendly, safe and sustainable.
Scheda tecnica del prodotto
Tipo di sistema
Panel Formwork
Dimensioni
Altezze degli elementi: 2.70 m | 3.00 m | 3.30 m | 3.60 m,
Larghezze degli elementi: 0.30 m | 0.45 m | 0.60 m | 0.90 m | 1.20 m | 2.40 m
Pressione del calcestruzzo fresco
60 kN/m² when using MX15/DW15; 80 kN/m² when using MX18/DW20
Rivestimento anticorrosivo e superficiale
PERIskin Corrosion Prevention System right down to the cavities
Tecnologia dei tiranti
Use with MX Tie Technology for wall thicknesses from 15 cm to 40 cm (MX15) or to 60 cm (MX18), use with DW Ties for thicker walls
Tecnologia di connessione
Closure technology also for increased requirements such as water-proof concrete, architectural concrete, F 9; with corresponding test certificates
Compatibile con
TRIO Panel Fomwork can be attached at the side
App e strumenti
PERI QuickSolve Planner
Enrico Schirmer
Site Manager | Mayer Bau
By operating the formwork from the inside, we only need three men on the construction site and also reduce the construction time of the basement walls from four to three days. The concrete result with the orderly tie and joint pattern has exposed concrete quality and meets the increased requirements. The PERI MAXIMO is unbeatable - I am thrilled and fully convinced.
